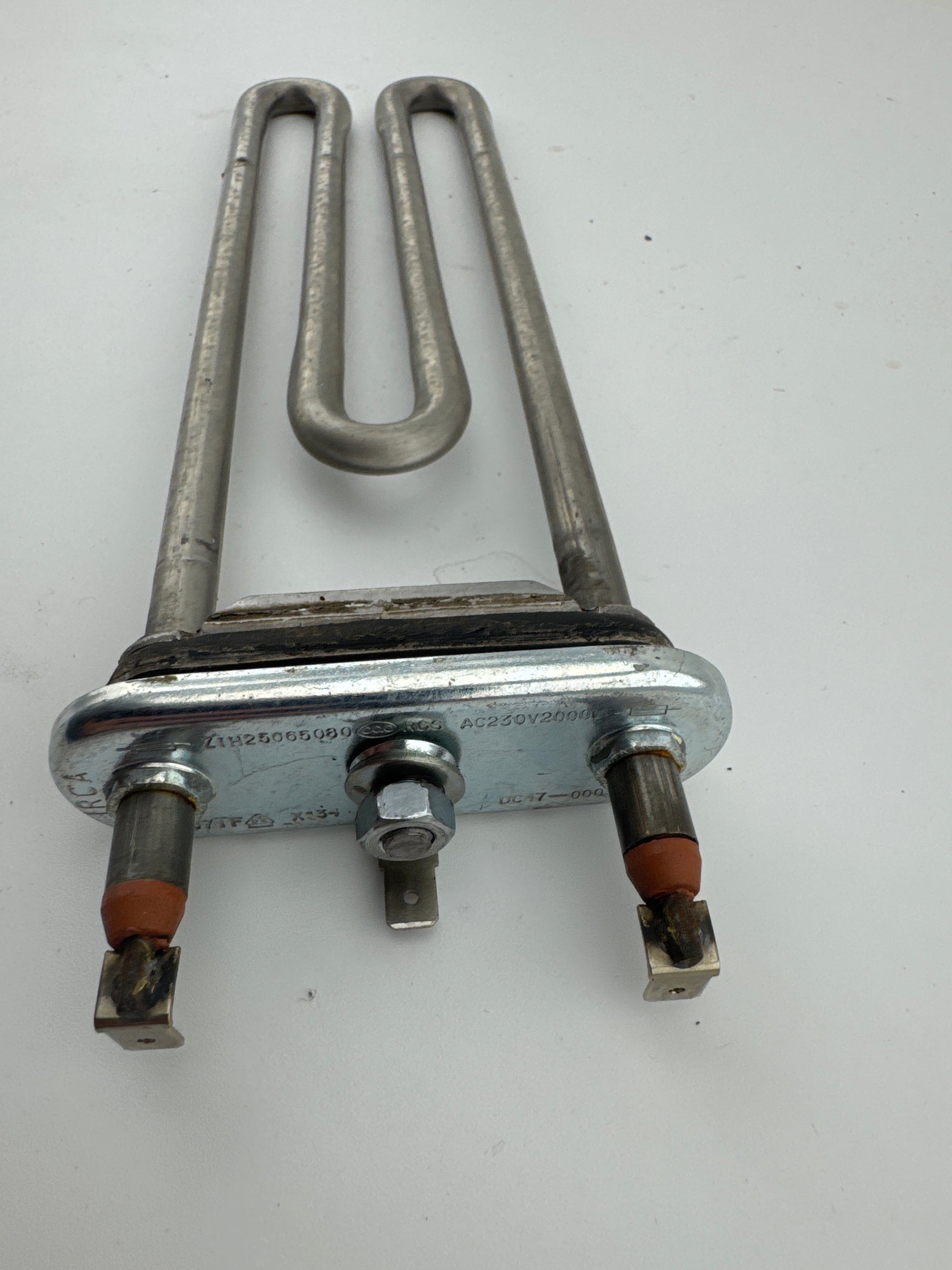

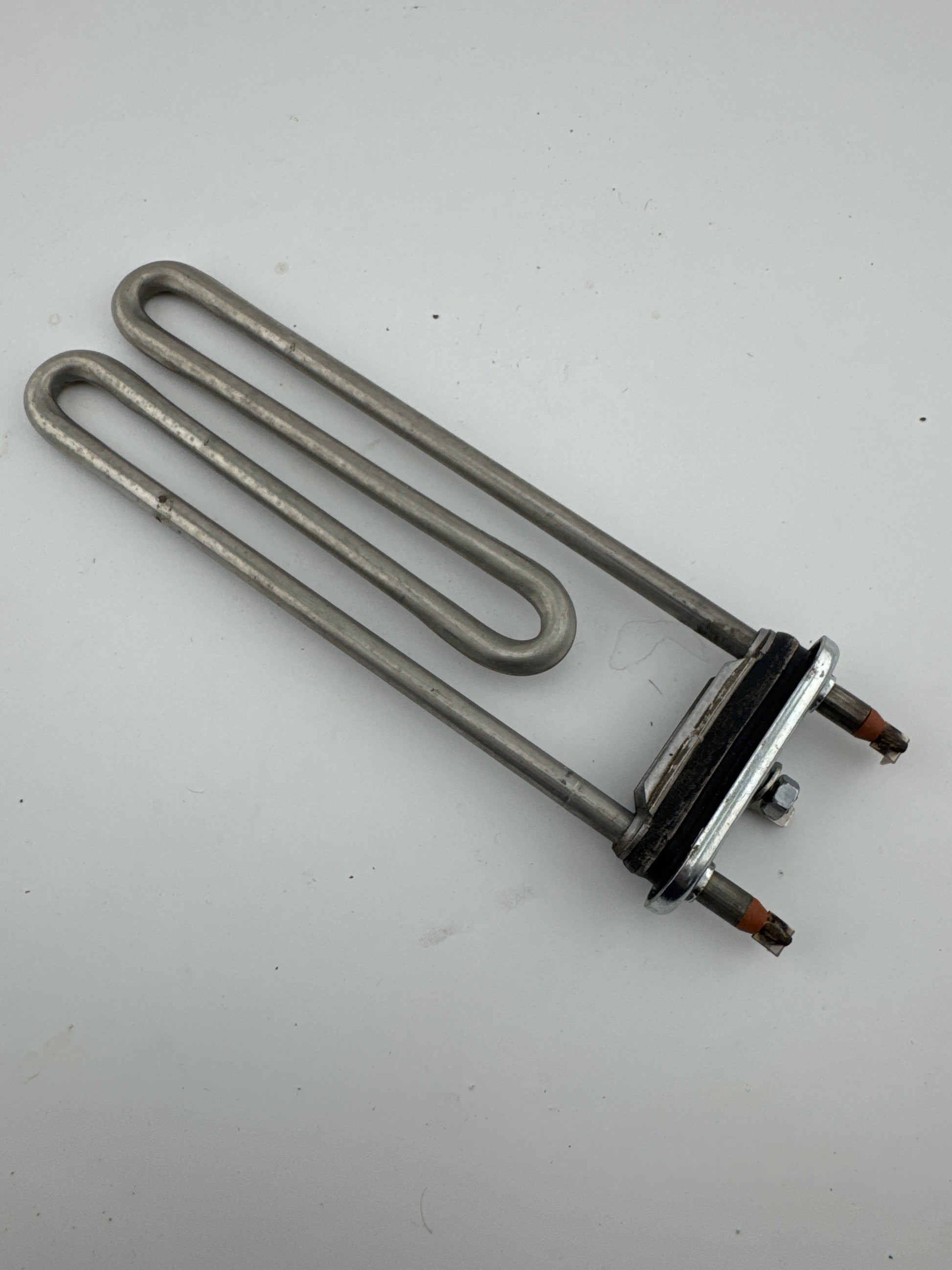

Samsung Wash Heating Element 2000W DC47-00033B

Samsung Wash Heating Element 2000W DC47-00033B

£14.00 GBP
£14.00 GBP
Sale Sold out Second-hand
Tax included. Shipping calculated at checkout.
SKU: B27A-DC47-00033B
Check Compatibility
Full fully working condition and tested
Came off the washing machine with blown PCB DC47-00033B



If you are finding your washing machine is not heating as it should be then you may have a faulty wash element as the cause. The function of the wash element is to heat the water to the washing temperature selected, but if the element fails it will mean the water will not heat up as required – and will result in your clothes not being washed as clean as usual.

Over time limescale deposits build up on the element and this can be one of the reasons as to why it may have failed. With this replacement element, your washing machine could be performing back at its best in getting your clothes clean to the usual standards again.

Please check model fit list to ensure this part is correct for your model.

Specification:

2000 watts



230 volts



Single Tag Type



Earth Tag



Full length of element: 250mm



Length of element to bracket: 220mm



Width of element: 65mm



Length of element to tubliar bend: 165mm

Manufacturers Part Number

DC47-00033B

Alternative Part Numbers

DC4700033B



DC4700033A



DC47-00033A



DC97-4827E



DC974827E

EAN

5055356409965
