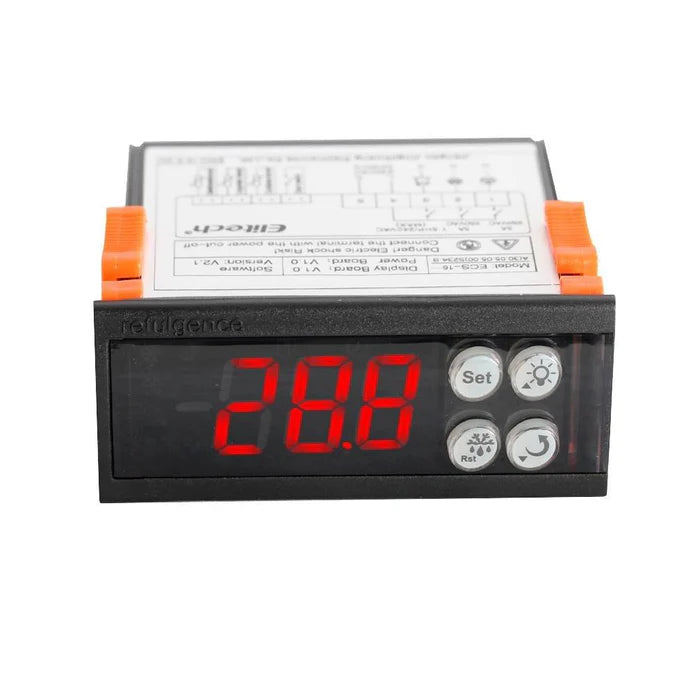

Elitech UECS-16 Black Fascia One-Way Output Digital Temperature Controller, Cooling or Heating Mode, Direct Drive Single-phase 1.5HP Compressor

Elitech UECS-16 Black Fascia One-Way Output Digital Temperature Controller, Cooling or Heating Mode, Direct Drive Single-phase 1.5HP Compressor

£9.95 GBP
£9.95 GBP
Sale Sold out New
Tax included. Shipping calculated at checkout.
SKU: B28C-UECS-16
Check Compatibility
This Elitech ECS-16 One-Way Output Digital Temperature Controller, Cooling or Heating Mode, Direct Drive Single-phase 1.5HP Compressor is a small, high-precision, easy-to-operate temperature controller thermostat, suitable for temperature control of refrigeration/ heating. The refrigeration relay is a 30A/240V output, which can directly drive a 1.5HP compressor in a single phase. With temperature measurement, temperature display, temperature control, temperature correction, forced defrosting, and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters.

The parameter setting of ECS-16 is divided into the user menu and administrator menu. If you are an equipment company, you can set up the administrator menu parameters. The end-user only sets the user parameter menu, which is convenient for users to operate. The administrator menu has a password protection function to prevent users from misusing settings.

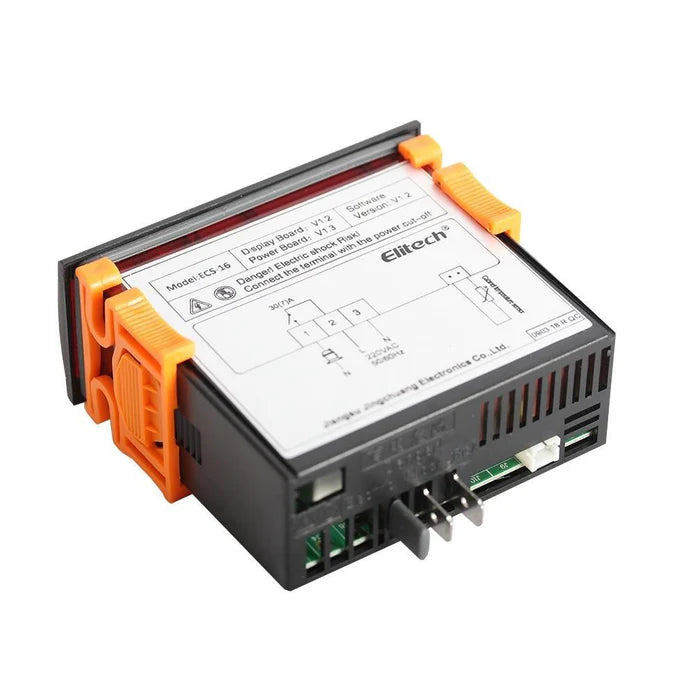

The main purpose of ECS-16 is to control the temperature of beverage cabinets. Therefore, we set its wiring port as a quick-connect port to facilitate the production and after-sales of professional equipment manufacturers. It is also suitable for freezers, refrigeration, seafood machines, and water heaters.

One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/ heating equipment.

Model: ECS-16
Operating Voltage: 220VAC±10%; 50/60Hz
Overall Power Consumption: <3W
Temperature Measurement Range: -50℃～90℃
Temperature Control Range: -50℃～85℃
Temperature Measurement Accuracy: ±1℃(-40℃～50℃), Others ±2℃
Display Resolution: 1℃

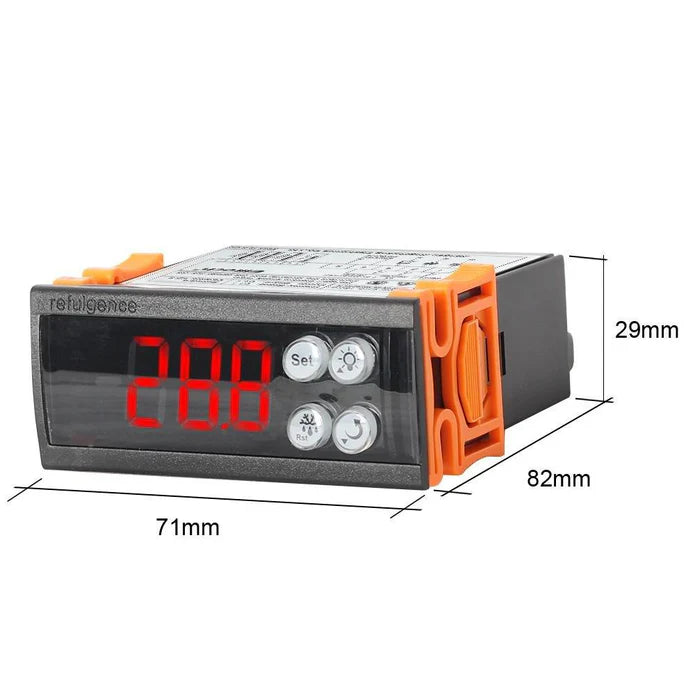

Product Size: 78.5×34.5×78.5（mm）
Mounting Dimension: 71×29 (mm)
Rated Current of Output Relay (Refrigeration/ Heating): 30A/240VAC
