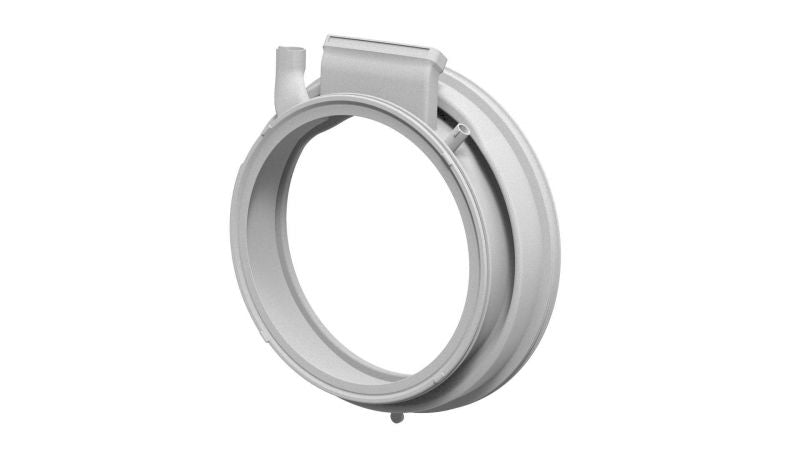

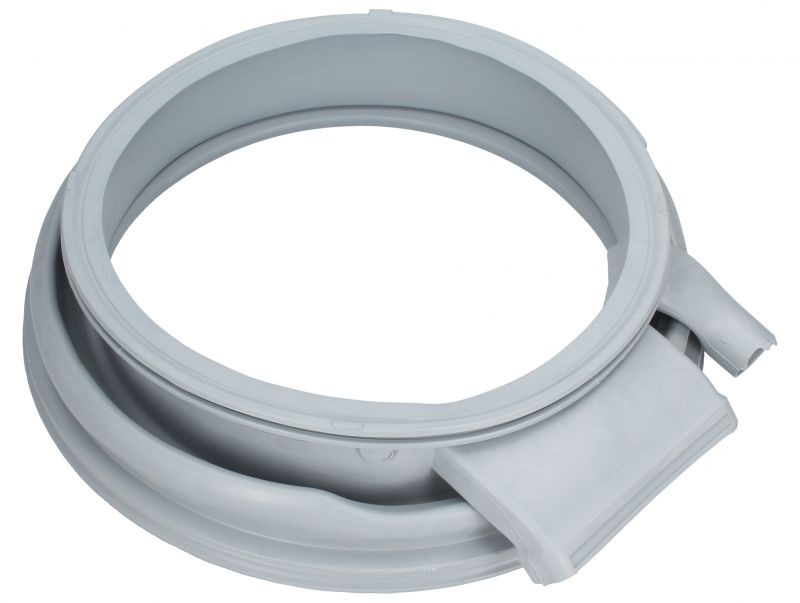

Bosch Neff Siemens Door Seal Gasket 00778589

Bosch Neff Siemens Door Seal Gasket 00778589

£65.59 GBP
£65.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
SKU: HTR-153519
Check Compatibility

Please check compatibility before ordering.

If the door seal on your appliance needs to be replaced then this is the ideal replacement.

The washing machine door seal, otherwise known as a gasket, is a very important part of the appliance on a front loader machine. It securely seals the door in place when shut to prevent any water getting out. During a cycle, most washing machine doors automatically lock which is when the door seal does its job best.

The faults listed below indicate an issue with the door seal. You may need to replace the seal if:

- Your appliance is leaking from the front of the door - The door seal is torn, warped or damaged- Mould has built up at the bottom of the seal and it's beyond cleaning

Bear in mind that the door seal may not be the only fault that can cause a leak in your washing machine.

Door seals are not a consumable item and so they will usually only need to be replaced if they are perished or broken. However, constant opening and closing of the door can eventually take its toll on the seal, compressing it which can result in a leak.

If you leave any hard objects in the machine during the cycle such as keys or coins, this can tear the door seal, while water left at the bottom of the seal can cause it to perish. If you notice that your door seal is wearing away then it's probably time to change it.

Please check model fit list to ensure this part is correct for your model.

Manufacturers Part Number

00778589

Alternative Part Numbers

686730

778589

EAN

5054680054711

Will this part fit my Appliance?

Choose your brand to check if this part fits your appliance

Enter your model number and select from the below list

No matches were found for ''

Yes

This part is compatible with
().

Shipping & Delivery

All orders received before 1pm will be despatched the same day Monday to Friday. Orders received on Friday will be shipped for delivery on the following Monday.

All orders are shipped via the Royal Mail, Parcelforce, Hermes, DPD. This is all dependent on weight and size and deliveries can be tracked.

We will choose the best service dependent on our experience of delivering to your location or on the terms of your account.

 info@how-to-repair.com

Returns

WHEN YOU CAN RETURN AN ITEM

We hope you love what you buy from How-to-repair and you have no problems with your purchase. However, sometimes things do go wrong or if you do change your mind then this is our returns policy. You have 14 days to return something.

If the item was not as described, doesn’t work or damaged we will take returns but contact us first so we can give you correct postage infomation.

If you change your mind about a purchase and want to return it, then you're responsible for return postage charges and making sure that we actually receive it. We cannot be held responsible for returns we don’t receive.

please contact us via info@how-to-repair.com to let us us know your name, what you would like to return, a reason for returning and the invoice number for the item(s) you would like to return.

We will issue you with a returns number.

View full details

ALTERNATE MODEL NUMBERS 00778589/686730/778589

Balay
3TW976/01/3TW976/02/3TW976BA/01/3TW976X/01/3TW976X/02/3TW976XA/01

Bosch
WDG244601W/01/WDG244601W/02/WDG244601W/03/WDG244601W/04/WDG244601W/05/WDG244601W/06/WDG244601W/07/WDG244601W/08/WDG244601W/09/WDG244601W/10/WDG244681W/01/WDG244681W/02/WDG244681W/03/WDG244681W/04/WDG244681W/05/WDG244681W/06/WDG244681W/07/WDG244681W/08/WDG244681W/09/WDG244681W/10/WDG244C01W/01/WDG244C01W/02/WDG244C01W/03/WDG244C01W/04/WDG244C01W/05/WDG244C01W/06/WDG284601W/03/WDG284661W/03/WDG284681W/03/WDG284691W/03/WDG284E01W/03/WDG284E91W/03/WVG28420AU/03/WVG30421IT/01/WVG30421IT/02/WVG30421IT/03/WVG30421IT/04/WVG30421IT/05/WVG30422IT/01/WVG30422IT/02/WVG30430/01/WVG30430/03/WVG30430/04/WVG30430/05/WVG30440TR/01/WVG30440TR/02/WVG30440TR/03/WVG30441EU/01/WVG30441EU/02/WDG284601W/05/WDG284681W/05/WDG284691W/05/WVG30441EU/05/WVG30441ID/05/WVG30441NL/05/WVG30441SN/05/WVG30442/05/WVG30442SN/05/WVG30460GC/05/WVG30460IN/05/WVG30460ME/05/WVG30460TR/05/WVG30461FF/05/WVG30461GB/05/WVG30461OE/05/WVG3046SGB/05/WVG3046SGC/05/WVG30490/05/WVH28420GB/05/WVH28421GB/05/WDG284601W/01/WDG284601W/02/WDG284601W/04/WDG244C01W/07/WVG30460GC/07/WVG30460IN/07/WVG3047SGB/01/WVG3047SGB/02/WVH28470EP/01/WVH28470EP/02/WVH28471EP/01/WVH2847XEP/01/WVH2847XEP/02/WDG244C01W/08/WDG284661W/01/WDG284661W/02/WDG284661W/04/WDG284681W/01/WDG284681W/02/WDG284681W/04/WDG284691W/01/WDG284691W/02/WDG284691W/04/WDG284E91W/01/WDG284E91W/02/WDG284E91W/04/WVG30490/01/WVG30490/03/WVG30490/04/WVG30493/01/WVG30493/02/WVH2849EPL/01/WVH2849XEP/01/WVG28420AU/01/WVG28420AU/02/WVH28440AU/01/WVH28440AU/02/WVH28440AU/03/WVH28440AU/04/WVH28440AU/05/WVH28440AU/06/WVH28441AU/01/WVG30461GB/01/WVG30461GB/02/WVG30461GB/03/WVG30461GB/04/WVG30462GB/01/WVG30462GB/02/WVG3046SGB/01/WVG3046SGB/02/WVG3046SGB/03/WVG3046SGB/04/WVH28360GB/01/WVH28360GB/02/WVH2836SGB/01/WVH2836SGB/02/WVH28420BY/01/WVH28420GB/01/WVH28420GB/02/WVH28420GB/03/WVH28420GB/04/WVH28421GB/01/WVH28421GB/02/WVG30460GC/01/WVG30460GC/02/WVG30460GC/03/WVG30460GC/04/WVG30460GC/06/WVG3046SGC/01/WVG3046SGC/02/WVG3046SGC/03/WVG3046SGC/04/WVG3046SGC/06/WVH28440CH/01/WVH28440CH/02/WVH28440CH/03/WVH28440CH/04/WDG284E01W/01/WDG284E01W/02/WDG284E01W/04/WVG30441EU/03/WVG30441EU/04/WVG30442EU/01/WVG30442EU/02/WVG30460ME/01/WVG30460ME/03/WVG30460ME/04/WVG30461ME/01/WVG30461ME/02/WVG30461ME/03/WVG30461OE/01/WVG30461OE/03/WVG30461OE/04/WVG30461FF/01/WVG30461FF/02/WVG30461FF/03/WVG30461FF/04/WVG30462FF/01/WVG30462FF/02/WVH28360FF/01/WVH28460FF/01/WVH28460FF/02/WVH28461FF/01/WVH28461FF/02/WVH28461FF/03/WVH28463FF/01/WVG30460TH/01/WVG30460TH/02/WVG30460TH/03/WVH24360TI/01/WVH24360TI/20/WVH24360TI/21/WVH24360TI/22/WVH24360TI/23/WVH24360TI/24/WVH24360TI/30/WVH24460EE/01/WVH24460EE/02/WVH24460EE/03/WVH24460EE/04/WVH24460EP/01/WVH24460EP/02/WVH24460EP/03/WVH24460TI/01/WVH24460TI/02/WVH24460TI/03/WVH24460TI/20/WVH24460TI/21/WVH24460TI/22/WVH28320IT/01/WVH28320IT/02/WVH28320SN/01/WVG30441ID/01/WVG30441ID/02/WVG30441ID/03/WVG30441ID/04/WVG30460IN/01/WVG30460IN/02/WVG30460IN/03/WVG30460IN/04/WVG30460IN/06/WVG30460IR/01/WVG30460IR/02/WVG30460IR/03/WVG30460IR/04/WVG30462IR/01/WVG30462IR/02/WVG3046SIN/01/WVG30441NL/01/WVG30441NL/02/WVG30441NL/03/WVG30441NL/04/WVG30442NL/01/WVG30442NL/02/WVG30460PL/01/WVG30460PL/02/WVH28420PL/01/WVH28440NL/01/WVH28440NL/02/WVH28441NL/01/WVH28441NL/02/WVH28441NL/03/WVH28441NL/04/WVH28443NL/01/WVH28443NL/02/WVH28443NL/03/WVH28444NL/01/WVG30441SN/01/WVG30441SN/02/WVG30441SN/03/WVG30441SN/04/WVG30442SN/01/WVG30442SN/02/WVG30442SN/03/WVG30442SN/04/WVG30443SN/01/WVG30443SN/02/WVG30444SN/01/WVG30444SN/02/WVG30463OE/01/WVG30463OE/02/WVG30463OE/03/WVH28360OE/01/WVH28360OE/02/WVH28441OE/01/WVH28441OE/02/WVH28441OE/03/WVH28442OE/01/WVH28442OE/02/WVH28442OE/03/WVH28460EP/01/WVH28460EP/02/WVH28460EP/03/WVH2846XEP/01/WVH2846XEP/02/WVH2846XEP/03/WVG30460GR/01/WVG30460GR/02/WVG30460GR/03/WVG30460TR/01/WVG30460TR/02/WVG30460TR/03/WVG30460TR/04/WVH28340TR/01/WVH28420TR/01/WVH28420TR/02/WVH28440TR/01/WVH28440TR/02/WVH28440TR/03/WVG30462SG/01/WVG30462SG/02/WVG30462SG/03/WVG30462SG/04/WVG3046SEG/01/WVH28340EU/01/WVH28340EU/02/WVH28420EU/01/WVH28420EU/02/WVH28420EU/03/WVH28420EU/04/WVH28421EU/01/WVH28421EU/02/WVH28421EU/03/WVH28421EU/04/WVH2846XEE/01/WVH2846XEE/02/WVH2846XEE/03/WVG30442/01/WVG30442/03/WVG30442/04/WVH28440/05/WVH284601W/05/WVH284681W/05/WVH28341/01/WVH28421GB/03/WVH28421GB/04/WVH28422GB/01/WVH28422GB/02/WVH28422GB/03/WVH28424GB/01/WVH28368TI/01/WVH28368TI/20/WVH28368TI/21/WVH28368TI/22/WVH28368TI/23/WVH28368TI/24/WVH28368TI/30/WVH28420IT/01/WVH28420IT/02/WVH28420IT/04/WVH28421IT/01/WVH28420SN/01/WVH28420SN/02/WVH28420SN/03/WVH28422SN/01/WVH28421IT/02/WVH28421IT/03/WVG30443/01/WVG30443/02/WVH28460EE/01/WVH28460EE/02/WVH28460EE/03/WVH28460EE/04/WVH28468TI/01/WVH28468TI/02/WVH28468TI/03/WVH28468TI/20/WVH28468TI/21/WVH28468TI/22/WVH28440/01/WVH28440/02/WVH28440/03/WVH28440/04/WVH28440/06/WVH284601W/01/WVH284601W/02/WVH284601W/03/WVH284601W/04/WVH284681W/01/WVH284681W/02/WVH284681W/03/WVH284681W/04

Neff
V7446X0GB/01/V7446X1GB/01/V7446X1GB/02/V7446X1GB/03/V7446X1GB/04/V7446X1GB/05/V7446X2GB/01/V7446X2GB/02

Siemens
WD12G4601W/01/WD12G4601W/02/WD12G4601W/03/WD12G4601W/04/WD12G4601W/05/WD12G4601W/06/WD12G4601W/07/WD12G4601W/08/WD12G4601W/09/WD12G4601W/10/WD12G4601W/11/WD12G4601W/12/WD12G4681W/01/WD12G4681W/02/WD12G4681W/03/WD12G4681W/04/WD12G4681W/05/WD12G4681W/06/WD12G4681W/07/WD12G4681W/08/WD12G4681W/09/WD12G4681W/10/WD12G4691W/01/WD12G4691W/02/WD12G4691W/03/WD12G4691W/04/WD12G4681W/11/WD12G4681W/12/WD12G4C01W/03/WD12G4C81W/03/WD12G4E01W/03/WD12G4M02W/03/WD12G4M82W/03/WD12G4R01W/03/WD12H360TI/01/WD12H360TI/20/WD12H360TI/21/WD12H360TI/22/WD12H360TI/23/WD12H360TI/24/WD12H360TI/30/WD12H420EE/03/WD12H420EP/03/WD12H460TI/03/WD14G4631W/01/WD14G4631W/02/WD14G4631W/03/WD14G4631W/04/WD14G4631W/05/WD14G4641W/03/WD14G4681W/03/WD12G4691W/05/WD12G4C01W/05/WD12G4C81W/05/WD12G4E01W/05/WD12G4R01W/05/WD14G4681W/05/WD14G4C91W/05/WD14G4E81W/05/WD14H420GB/05/WD14H421EU/05/WD14H440/05/WD14H4601W/05/WD14H461FF/05/WD14H4681W/05/WD15G4/90/WD15G420HK/01/WD15G421GB/01/WD15G421GB/02/WD15G421GB/03/WD15G421GB/04/WD15G421GB/05/WD15G421HK/01/WD15G421HK/02/WD12G4C01W/07/WD12G4C81W/07/WD12G4E01W/07/WD12G4R01W/07/WD14H440/07/WD15G421HK/07/WD15G460GC/07/WD15G460IN/07/WD12G4C01W/08/WD12G4C81W/01/WD12G4C81W/02/WD12G4C81W/04/WD12G4C81W/06/WD12G4C81W/08/WD12G4C81W/09/WD12G4E01W/08/WD12G4M82W/01/WD12G4M82W/02/WD12G4691W/06/WD12G4C01W/09/WD12G4E01W/09/WD12G4R01W/09/WD14G4C91W/01/WD14G4C91W/02/WD14G4C91W/03/WD14G4C91W/04/WD15G490/01/WD15G490/03/WD15G490/04/WD15G490/05/WD15G493/01/WD15G493/02/WD15H590/01/WD14H320GB/01/WD14H320GB/02/WD14H420GB/01/WD14H420GB/02/WD14H420GB/03/WD14H420GB/04/WD14H421GB/01/WD14H421GB/02/WD14H421GB/03/WD14H422GB/01/WD15G422GB/01/WD15G422GB/02/WD12G4C01W/01/WD12G4C01W/02/WD12G4C01W/04/WD12G4C01W/06/WD12G4C01W/10/WD12G4C01W/11/WD12G4C01W/12/WD12G4E01W/01/WD12G4E01W/02/WD12G4E01W/04/WD12G4E01W/06/WD12H420EE/01/WD12H420EE/02/WD12H420EE/04/WD12H420EP/01/WD12H420EP/02/WD14G4E31W/01/WD14G4E31W/02/WD14G4E31W/03/WD14G4E31W/04/WD14G4E81W/01/WD14G4E81W/02/WD14G4E81W/03/WD14G4E81W/04/WD14H320EU/01/WD14H360FF/01/WD14H460FF/01/WD14H460FF/02/WD14H460FF/03/WD14H460FF/04/WD14H461FF/01/WD14H461FF/02/WD14H461FF/03/WD14H462FF/01/WD14H462FF/02/WD14H462FF/03/WD14H464FF/01/WD15G461FF/01/WD15G461FF/02/WD15G461FF/03/WD15G461FF/04/WD15G461FF/05/WD15G462FF/01/WD15G462FF/02/WD12H460TI/01/WD12H460TI/02/WD12H460TI/20/WD12H460TI/21/WD12H460TI/22/WD14H340GC/01/WD14H340TR/01/WD14H341/01/WD14H368TI/01/WD14H368TI/20/WD14H368TI/21/WD14H368TI/22/WD14H368TI/23/WD14H368TI/24/WD14H368TI/30/WD14H468TI/01/WD14H468TI/02/WD14H468TI/03/WD14H468TI/20/WD14H468TI/21/WD14H468TI/22/WD14G4J02W/01/WD14G4J02W/02/WD14G4J02W/03/WD14G4J42W/01/WD14G4J42W/02/WD14G4J42W/03/WD15G421HK/03/WD15G421HK/04/WD15G421HK/05/WD15G421HK/06/WD14H420PL/01/WD15G441NL/01/WD15G441NL/03/WD15G441NL/04/WD15G441NL/05/WD15G442NL/01/WD15G442NL/02/WD12G4M02W/01/WD12G4M02W/02/WD12G4M02W/04/WD12G4M82W/04/WD14G4M32W/01/WD14G4M82W/01/WD14G4M82W/02/WD14G4M82W/03/WD15G441DN/01/WD15G441DN/02/WD15G441DN/03/WD15G441DN/04/WD15G441DN/05/WD15G442DN/01/WD15G442DN/02/WD15G460IN/01/WD15G460IN/02/WD15G460IN/03/WD15G460IN/04/WD15G460IN/05/WD15G460IN/06/WD14H420OE/01/WD14H420OE/02/WD14H441OE/01/WD14H441OE/02/WD14H441OE/03/WD14H441OE/04/WD14H442OE/01/WD14H442OE/02/WD14H442OE/03/WD14H420EP/01/WD14H420EP/02/WD14H420EP/03/WD14H42XEP/01/WD14H42XEP/02/WD14H42XEP/03/WD12G4R01W/01/WD12G4R01W/02/WD12G4R01W/04/WD12G4R01W/06/WD12G4R01W/08/WD14H420TR/01/WD14H420TR/02/WD14H420TR/03/WD14H440TR/01/WD14H440TR/02/WD14H440TR/03/WD15G440TR/01/WD15G440TR/02/WD15G440TR/03/WD15G460GR/01/WD15G460GR/04/WD15G460TR/01/WD15G460TR/02/WD15G460TR/03/WD15G460TR/04/WD15G460TR/05/WD15G46SGC/01/WD15G46SGC/02/WD15G46SGC/03/WD15G46SGC/04/WD15G46SGC/05/WD15G46SGC/06/WD14H420EU/01/WD14H420EU/02/WD14H420EU/03/WD14H420EU/04/WD14H421EU/01/WD14H421EU/02/WD14H421EU/03/WD14H421EU/04/WD15G441EU/01/WD15G441EU/03/WD15G441EU/04/WD15G441EU/05/WD15G442EU/01/WD15G442EU/02/WD15G4V1/01/WD15G4V1/02/WD15G4V1/03/WD15G4V1/04/WD15G4V1/05/WD14H42XEE/01/WD14H42XEE/02/WD14H42XEE/03/WD14H3C00W/01/WD14H420EE/03/WD15G442/01/WD15G442/02/WD15G442/03/WD14G4681W/01/WD14G4681W/02/WD14G4681W/04/WD14H440/08/WD14H4681W/01/WD14H4681W/02/WD15G460GC/01/WD15G460GC/02/WD15G460GC/03/WD15G460GC/04/WD15G460GC/05/WD15G460GC/06/WD14H420EE/01/WD14H420EE/02/WD14H420EE/04/WD15G442IT/01/WD15G442IT/02/WD15G460TH/01/WD15G460TH/02/WD15G460TH/03/WD15G460TH/04/WD15G460TH/05/WD15G460TH/06/WD14H440/03/WD14H4601W/03/WD14H4602W/03/WD14H4681W/03/WD14H4682W/03/WD15G442/04/WD15G442/05/WD15G443/01/WD15G443/02/WD14G4641W/01/WD14G4641W/02/WD14G4641W/04/WD14H440/06/WD14H4601W/01/WD14H4601W/02/WD14H4601W/04/WD14H4602W/01/WD14H4602W/02/WD14H4681W/04/WD14H4682W/01/WD14H4682W/02/WD14H4682W/04/WD14H44/02/WD14H440/01/WD14H440/02/WD14H440/04/WD14H4602W/04

Will this part fit my Appliance?

Choose your brand to check if this part fits your appliance

Enter your model number and select from the below list

No matches were found for ''

Yes

This part is compatible with
().
