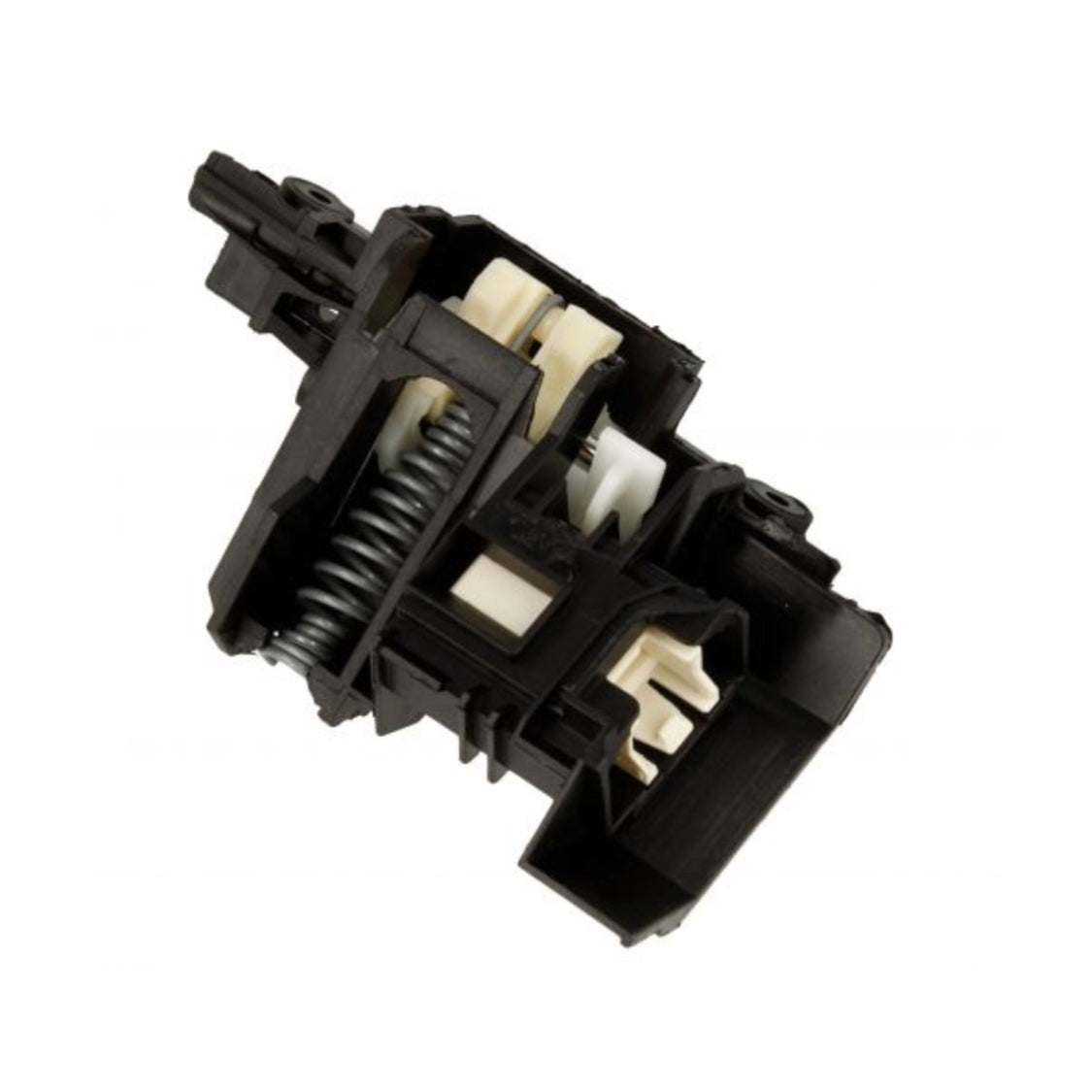

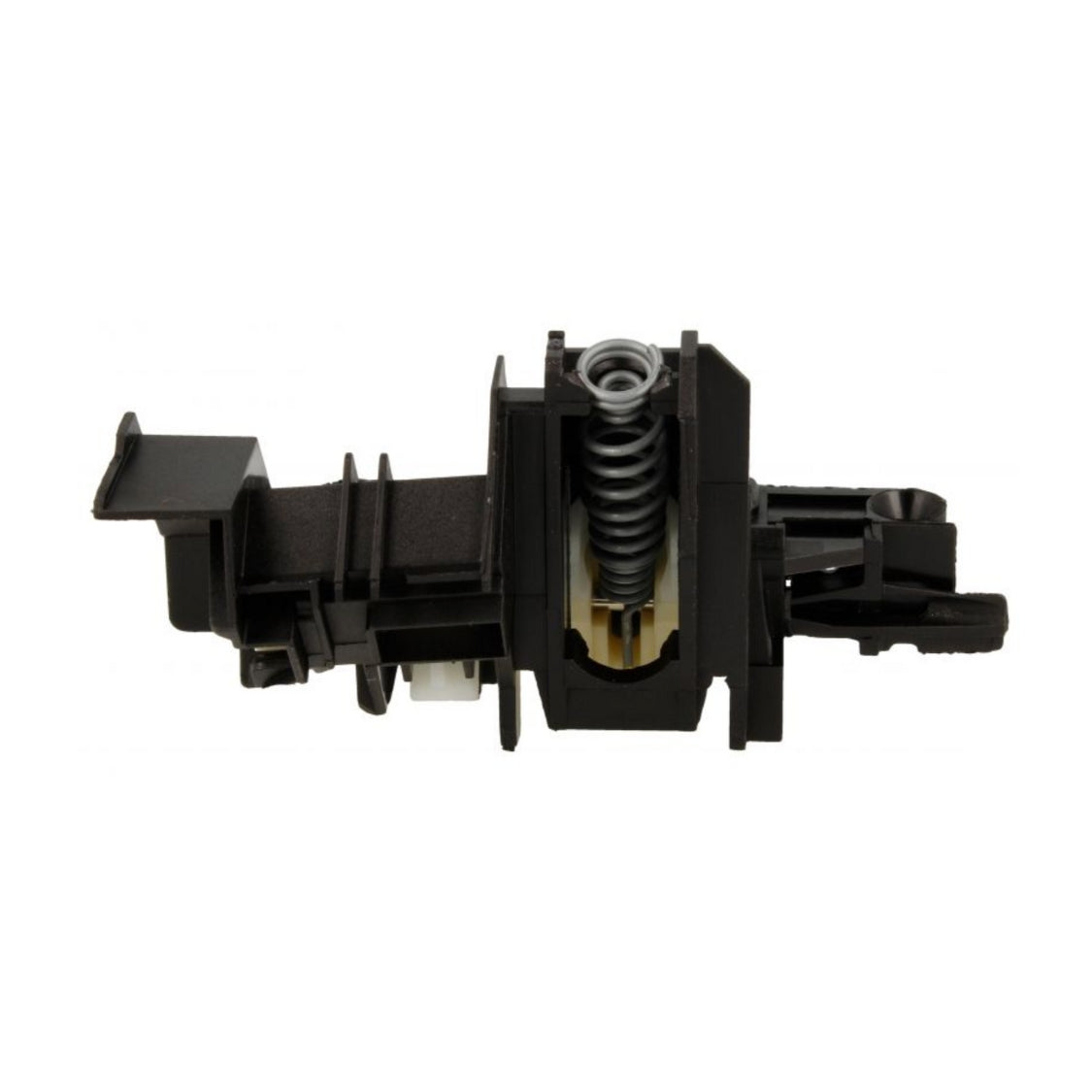

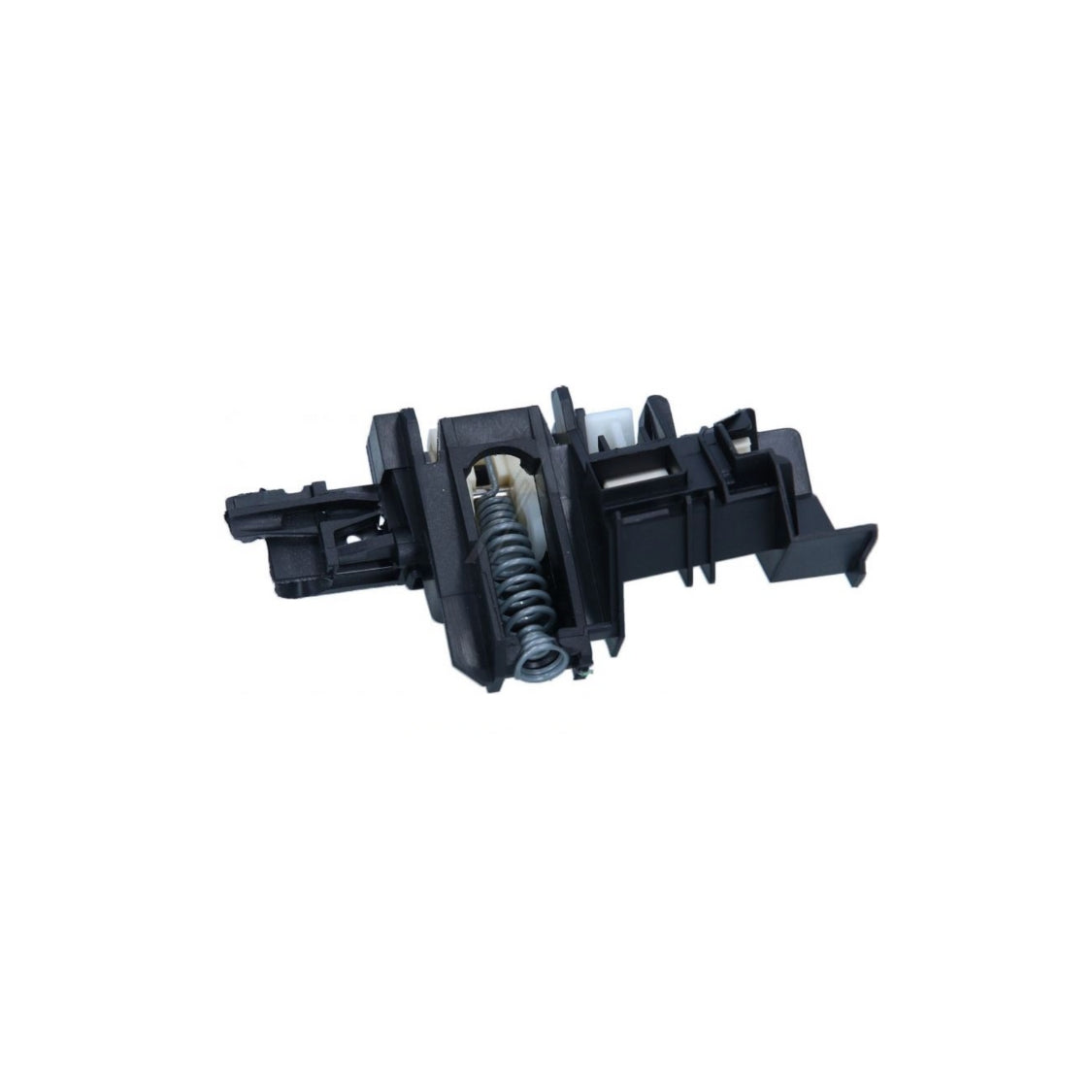

Bauknecht KitchenAid Whirlpool Dishwasher Door Lock Latch Mechanism C00383064

Bauknecht KitchenAid Whirlpool Dishwasher Door Lock Latch Mechanism C00383064

£42.42 GBP
£42.42 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
SKU: HTR-184900
Check Compatibility
Ensure the safety and proper operation of your appliance with this genuine Bauknecht Whirlpool Dishwasher Door Lock Latch Mechanism. This crucial electromechanical assembly is located at the top of the door and serves two primary functions:

- Secures the door closed during operation to prevent leaks.
- Includes a micro-switch that signals the control board when the door is closed, allowing the wash cycle to begin.

If your dishwasher fails to start (displaying an error code like F01/F06/F13), if the door won't stay latched, or if it leaks from the door seal, the internal components of the latch assembly may be faulty and require replacement.

There are various videos on our youtube channel about how to fix any appliance problems!

Manufacturer’s Part Number: C00383064

Will this part fit my Appliance?

Choose your brand to check if this part fits your appliance

Enter your model number and select from the below list

No matches were found for ''

Yes

This part is compatible with
().

Shipping & Delivery

All orders received before 1pm will be despatched the same day Monday to Friday. Orders received on Friday will be shipped for delivery on the following Monday.

All orders are shipped via the Royal Mail, Parcelforce, Hermes, DPD. This is all dependent on weight and size and deliveries can be tracked.

We will choose the best service dependent on our experience of delivering to your location or on the terms of your account.

 info@how-to-repair.com

Returns

WHEN YOU CAN RETURN AN ITEM

We hope you love what you buy from How-to-repair and you have no problems with your purchase. However, sometimes things do go wrong or if you do change your mind then this is our returns policy. You have 14 days to return something.

If the item was not as described, doesn’t work or damaged we will take returns but contact us first so we can give you correct postage infomation.

If you change your mind about a purchase and want to return it, then you're responsible for return postage charges and making sure that we actually receive it. We cannot be held responsible for returns we don’t receive.

please contact us via info@how-to-repair.com to let us us know your name, what you would like to return, a reason for returning and the invoice number for the item(s) you would like to return.

We will issue you with a returns number.

View full details

ALTERNATE MODEL NUMBERS 481010574865/C00383064

Bauknecht
GSF 61204 A++ WS/GSF 61307 A++ WS/GSI 61204 A++ IN/GSI 61307 A++ IN/GSIK 5104A2I/GSIK 6204A2P/GSU 61204 A++ IN/GSU 61307 A++ IN/GSUK 6203A2I/GSX 61204 A++/GSX 61307 A++/GSXK 6204A2/GSF 61415 A++ TR/GSI 158111 A++/GSI 158112 A++/GSI 158113 A+++/GSI 61415 A++ TR/GSU 158111 A++/GSU 158112 A++/GSU 158113 A+++/GSU 61415 A++TR/GSX 158111 A++/GSX 158112 A++/GSX 158113 A+++/GSX 61415 A++ TR/GSX 81454 A++/GSXA 6134 TR A++/GSXK 6214A2/GSFK 6274A2I/GSFP X285A3I/GSI 5664 WS/GSI 5994 IN/GSI 7994 IN/GSI 8994 IN/GSU 5664 WS/GSU 5674/GSX 5664/GSU 5675/GSI Champion A++ IN/GSU Champion A++ IN/GSX Champion A++

Ignis
ADL 600

KitchenAid
KDSCM 82130/KDSCM 82140/KDSDM 82130

Laden
C 5320 WH/LVI 220 FD/LVI 230 FD

Maytag
MDW 1001 AGW/MDW 2001 AGX

Whirlpool
ADG 2330 FD/ADG 400 IX/ADG 4570 FD/ADG 480 IX/ADG 5010/ADG 5010 IX/ADG 5520/ADG 5520 IX/ADG 5730 FD/ADG 5730 IX/ADG 5730 NB/ADG 5730 WH/ADG 5740 FD/ADG 6400/ADG 6500/ADG 7000/ADG 7200/ADG 8100 FD/ADG 8100 IX/ADG 8100 NB/ADG 9450 FD/ADG 9450 IX/ADG 9450 NB/ADG 9830 FD/ADP 100 IX/ADP 100 WH/ADP 130 IX/ADP 130 WH/ADP 200 IX/ADP 200 WH/ADP 400 IX/ADP 400 WH/ADP 410 IX/ADP 410 WH/ADP 4570 IX/ADP 500 IX/ADP 500 WH/ADP 500 WHS/ADP 5010 IX/ADP 5510 IX/ADP 5602 A++ WH/ADP 620 IX/ADP 6400 WH/ADP 670 WH/ADP 800 WH/ADP 9900 IXCY/ADPU 108 IX/ADPU 108 WH/ADPU 300 IX/ADPU 300 WH/ADPU 4570 IX/ADPU 4570 WH/KDSCM82130UK/KDSCM82140UK/KDSDM82130UK/MDW 3001 AGW/MDW 5001 AGW/ADP 1826 IX/WP 89/1/ADG 6542 FD/ADG 6542 NB/ADG 9772 NB/ADG 9772 WH/ADP 236 WH/ADP 325 WH/ADP 7452 A+ 6S SL/ADP 7526 WH/ADG 7433 FD/ADG 7433 IX/ADG 7633 FD A++/ADG 7633 IX/ADG 8773 A++ PC TR NB/ADG 8773 A++ PC TR WH/ADG 9773 FD/ADG 9773 IX/WP 66/3 IX/WP 66/3 NB/WP 76/3/ADG 5444 FD/ADG 5444 IX/ADG 8674 IX/ADG 9674 FD/WP 74/ADP 57 IX/ADPL 9875 IX/ADPL 9875 WH/WP 75/5 LD/ADG 8778 FD/ADG 8778 IX/ADG 8778 NB/ADG 8778 WH/ADG FLEX ++
