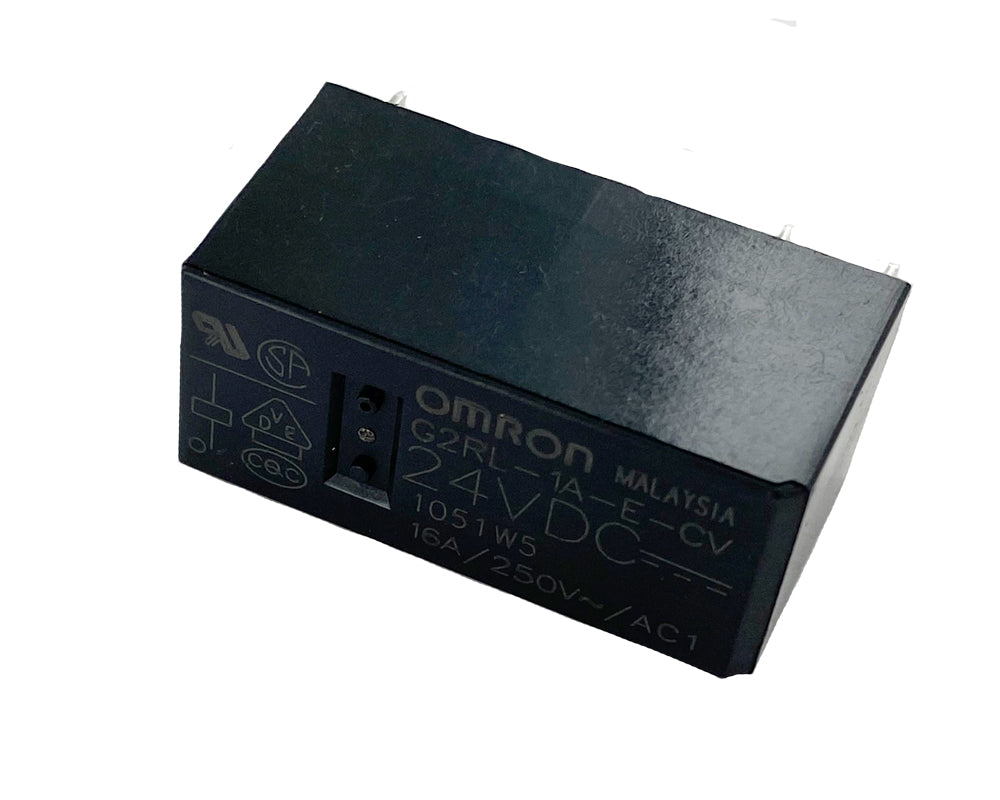

General Purpose Relay G2RL Series Power Non Latching SPST 24 VDC 16A

General Purpose Relay G2RL Series Power Non Latching SPST 24 VDC 16A

£9.95 GBP
£9.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
SKU: 00295
Tumble dryer relay The G2RL-1A-E-CV DC24 is a 1-pole Power PCB Relay with DC coil, G2RL series. SPST-NO contact configuration, high capacity classification. 16A, pinning 5mm, switching at 105��C. 10mm/10mm clearance and creepage distance. Offers high insulation with insulation distance above 8mm and impulse withstand voltage of 10kV between coil and contacts. Satisfies ambient operating temperature requirement of 85C. Standard model conforms to VDE standards. Meets EN60335-1 requirements for household products.

Flux protection enclosure
Available in flux protection and fully sealed enclosure types
SPST-NO, SPDT, DPST-NO, DPDT contact configurations
UL, CSA and VDE standards approved
Non latching coil type
Low coil power of 400mW
CV version available with 16A contact current, pinning 5mm, switching at 105��C
Available in 8A, 12A and 16A switching current based on models
Selectable coil voltage of 5VDC, 12VDC, 24VDC, 48VDC

Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics

Product Information
Contact Configuration: SPST
Coil Voltage: 24VDC
Contact Current: 16A
Product Range: G2RL
Relay Mounting: Through Hole
Coil Type: Non Latching
Contact Voltage VAC: 250VAC
Relay Terminals: Solder
Contact Voltage VDC: 24VDC
Contact Material: Silver Tin Oxide
Coil Resistance: 1.44kohm
